Digital Display charpy Izod Impact Testing Machine Toothbrush Pendulum

Place of Origin : China

Brand Name : GC

Certification : ISO

MOQ : 1 Set

Packaging Details : Wooden package

Delivery Time : In stock

Payment Terms : TT

Supply Ability : 100 Sets

Price : Negotiated

Model Number : GC-YSCJ-2.75

Model NO. : GC-YSCJ-2.75

Max Diameter of Workpiece : 1000mm

Mass Scope of Workpiece : <900kg

Type : Impact Testing Machine

Maxcapacity : <1000KN

Accuracy Grade : 0.5

Load Way : Electronic Load

Loading Method : Dynamic Load

Display : Digital

Control : Manual Control

Weight : 0-100Kg

Power Source : AC220V

Oil Cylinder Position : Under

Transport Package : Wooden Box Packaging

Trademark : GC

Origin : Guangdong

Contact Now

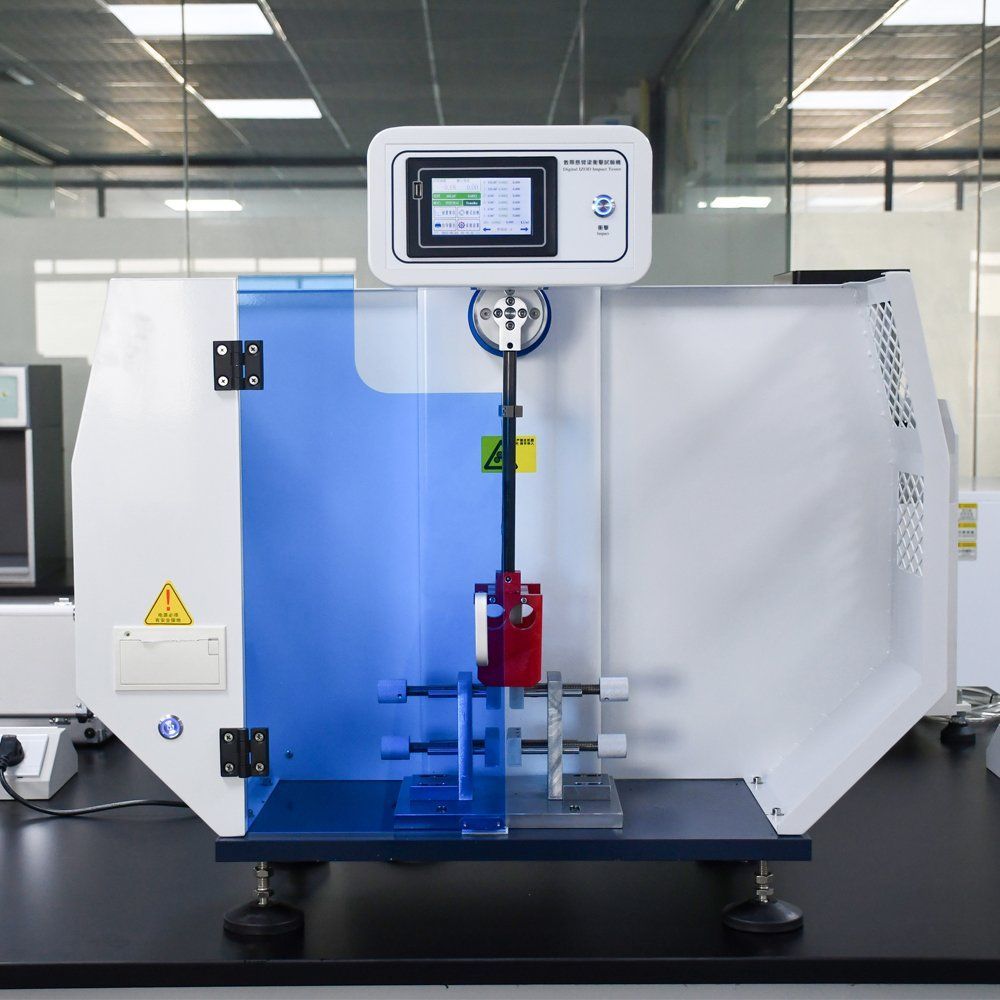

Toothbrush impact testing machine

Model: GC-YSCJ-2.75

Digital Display charpy Izod Impact Testing Machine Toothbrush Pendulum

1. Product introduction:

A toothbrush impact testing machine is a device that is used to test the durability and impact resistance of toothbrushes. This machine is designed to simulate the impact of brushing teeth on a toothbrush, to determine how well it can withstand the wear and tear of daily use.

The results of the test can be used to determine the durability and impact resistance of different toothbrush models, and to identify areas of weakness in toothbrush design that may need to be improved. This information can help manufacturers to develop toothbrushes that are more durable and longer-lasting, and that provide better overall performance for consumers.

2. Reference standard:

a. ISO180-2000 "Plastics - Determination of Izod Impact Strength of Hard Materials"
b. GB/T1843-2008 "Rigid Plastic Izod Impact Test Method"
c. JB/T8761-1998 "Plastic Izod Impact Testing Machine"
d. ASTM D256-2010 "Test method for determining the impact strength of plastic IZOD pendulum"
e. ISO 20126-2012 "Dentistry. Manual toothbrush. General requirements and test methods"

3. Product features:

a. High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately
b. Use carbon fiber pendulum to improve the rigidity of the material in the impact direction, and concentrate the impact mass on the center of mass of the pendulum to the maximum, so as to truly achieve no vibration impact test and increase the service life.
c. Imported high-resolution digital encoders are adopted, and the angle test accuracy is higher and more stable
d. The aerodynamic impact hammer and imported ball bearings greatly reduce the friction loss caused by machinery
e. Automatically calculate the final result, the test data can save 24 sets of data and calculate the average
f. IZOD impact testing machine can choose Chinese and English operation interface, and the test result can choose J/m, KJ/m², kg-cm/cm, ft-ib/in and other units
g. Built-in micro-printer. 24 test data values can be printed one by one, and the average value can also be printed.

4. Technical specifications:

Display mode	Digital touch screen (Chinese and English)
Angle sensor brand and accuracy	Imported Omron encoder, accuracy to 0.01°
Energy display accuracy	0.01J
Impact speed	3.5m/s
Pendulum energy	2.75J
Pendulum lift angle	150°
Distance from pendulum center to impact blade	335mm
Distance from the impact blade to the upper plane of the jaw	55mm
Edge fillet radius	R=0.8±0.2mm
Impact blade angle	75°
Machine weight	about 85kg
Power supply voltage	AC220V±10% 50HZ

5. Usage:

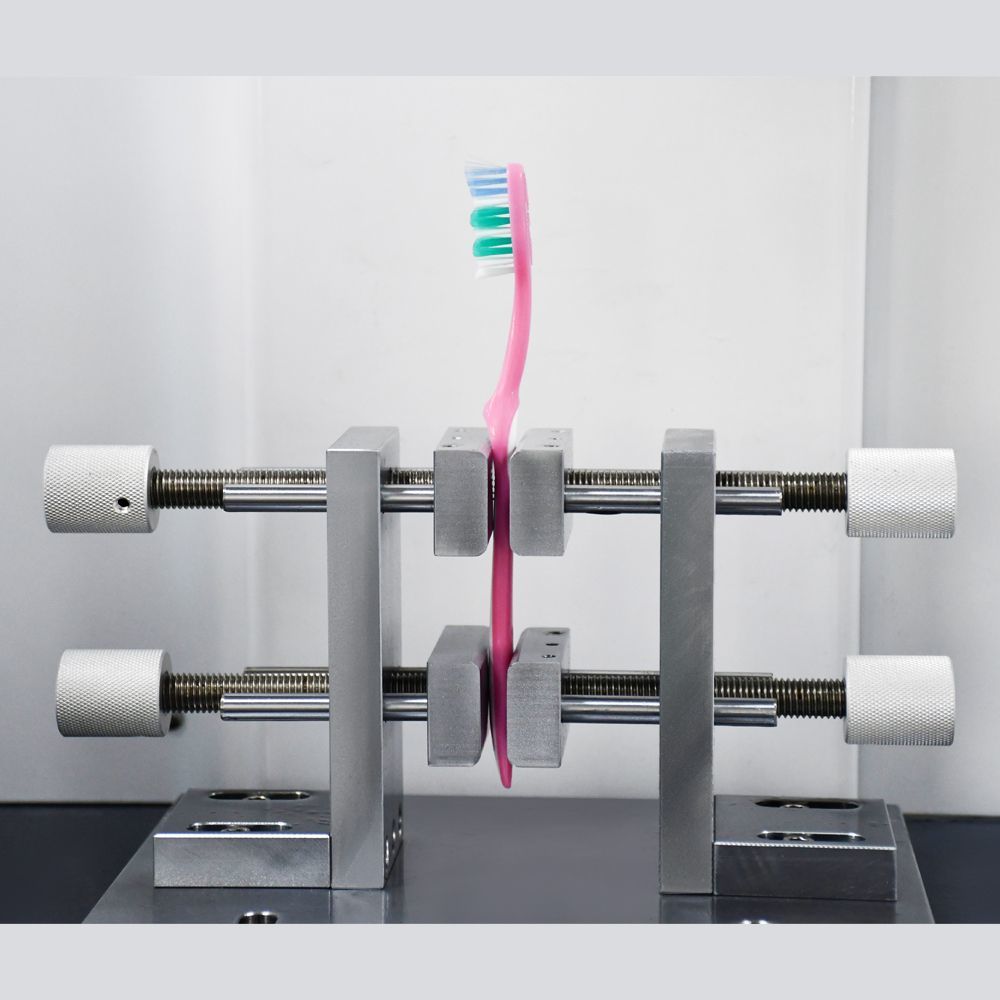

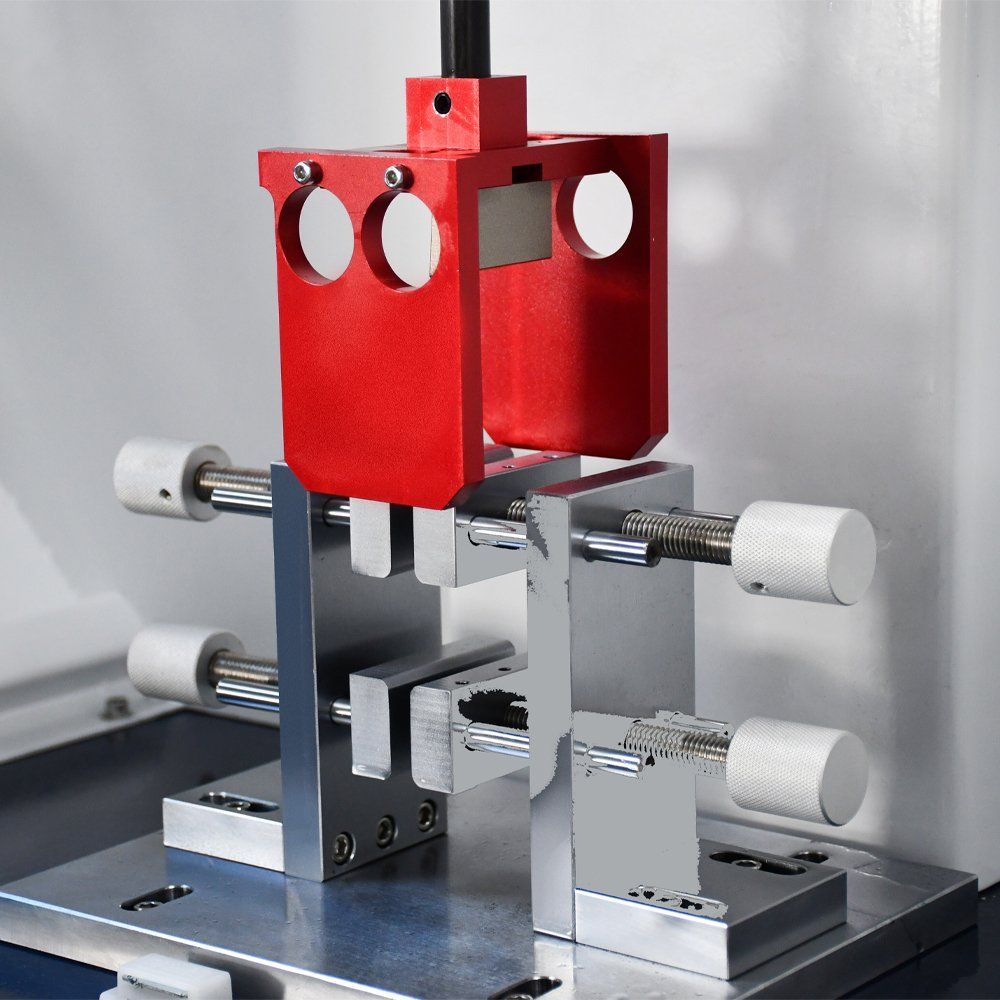

The toothbrush impact testing machine typically consists of a test platform, a test arm, and a brush head holder. The toothbrush is mounted on the brush head holder, and the test arm is used to strike the brush head with a controlled force.

During the test, the toothbrush is subjected to a series of impacts, which simulate the force of brushing teeth. The machine measures the force of each impact and records the number of impacts that the toothbrush can withstand before it fails.

Digital Display charpy Izod Impact Testing Machine Toothbrush Pendulum

Guangdong Guangce Instrument Technology Company Limited, located in Dongguan City, is a technology-based private enterprise engaged in research and development, production, OEM and sales of scientific and technological equipment manufacturing.
